Item No.: EW009
Certification: CE, ISO 13485
Price: To be confirmed based on your order
Payment Terms: T/T, L/C, Western Union, Paypal
Warranty: 1-year warranty, maintenance of life
Service: OEM/ODM

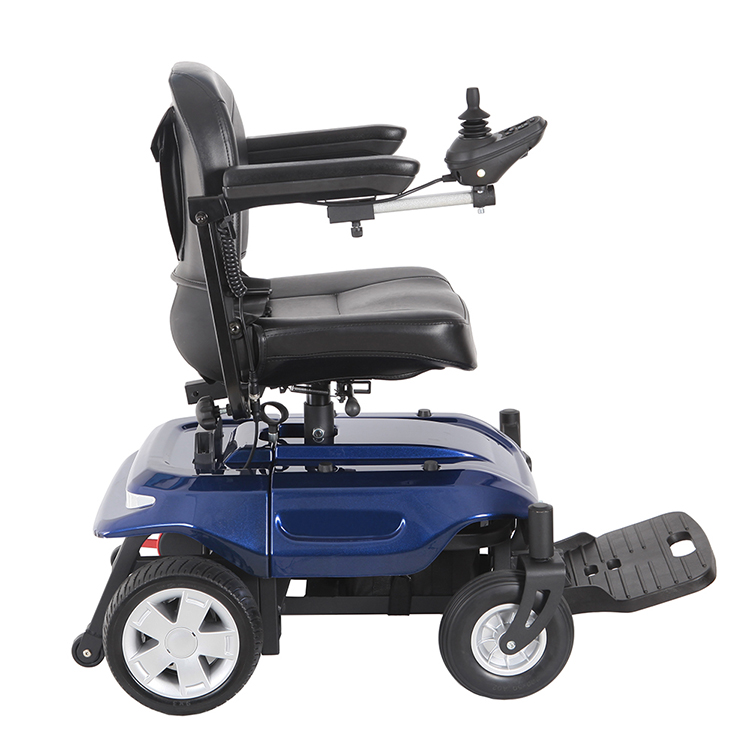

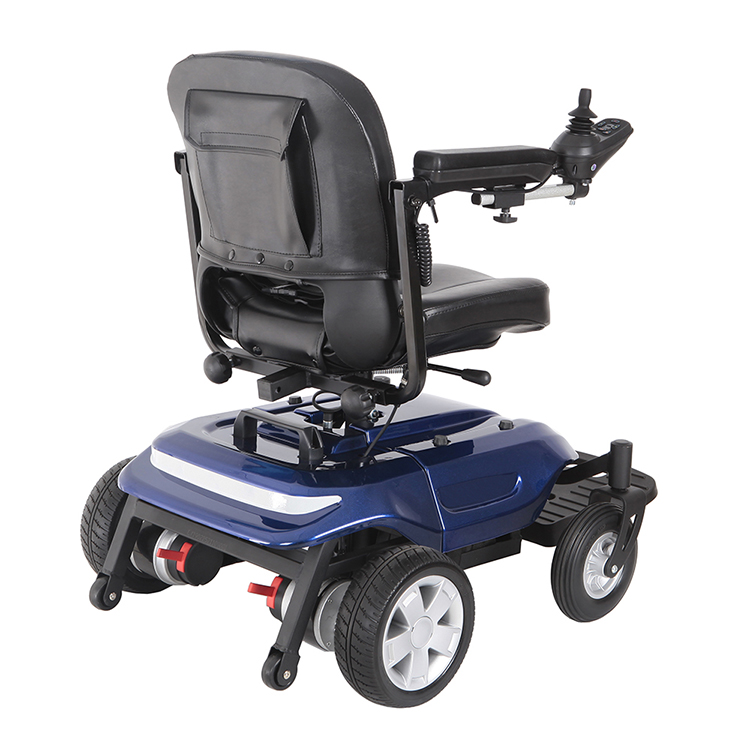

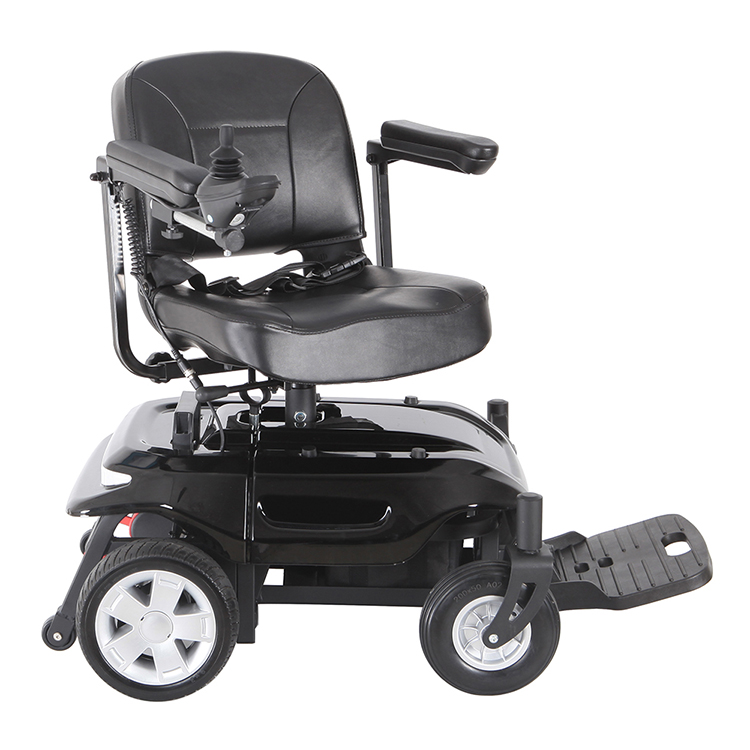

The lightweight powerchair features a height-adjustable seat, as well as width-adjustable armrests, meaning all users will be able to find a comfortable seating position. 360° swivel seat design and flip-up armrests enable safe and easy transfers in and out of the chair. The seat and back of the chair are padded for maximum comfort.

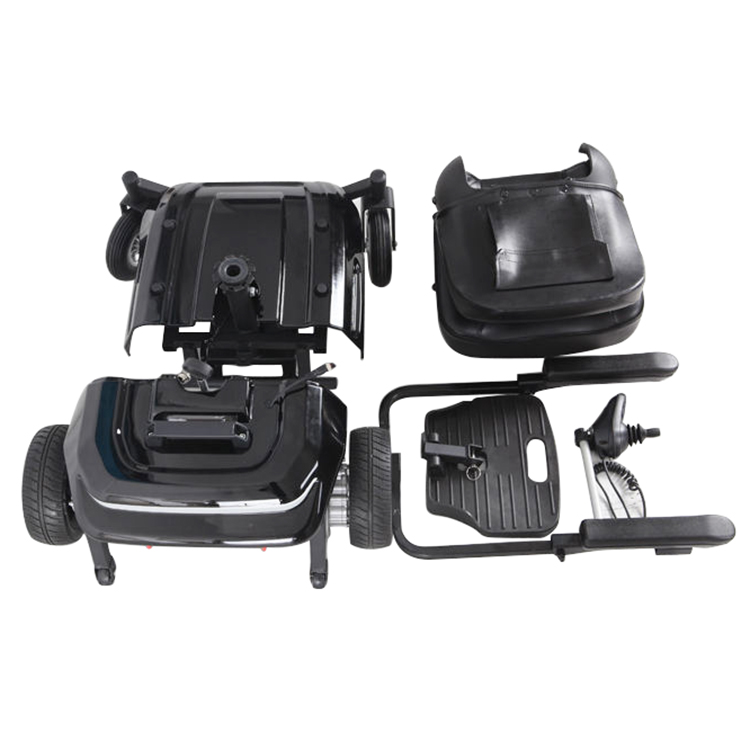

The wheelchair splits into four manageable sections for easy handling and storage, with the heaviest part weighing just 15.2kg. Simply separate the two main parts at the base of the powerchair, remove the battery box and detach the seat.
The chair is controlled with an easy-to-use joystick that can be placed on either the left or right-hand side depending on the user's preference. The joystick can be easily detached for traveling and safety in transit.
The Quick-Split electric wheelchair can reach maximum speeds of 4mph and travel up to 11 miles on a fully charged battery. The wheelchair is perfect for domestic and outdoor use such as supermarkets, shopping centers and parks.
For additional user safety, we've fitted electromagnetic brakes and an adjustable seat belt.
- The maximum speed of 4mph
- 11 miles range on a full battery charge
- Rear-wheel drive system
- Airline-friendly sealed lead acid battery (24v 20ah)
- Comfortable padded arm-rest and upholstery
- Folding backrest for easy storage and transportation
- Splits into 4 pieces for easy storage and lifting
- Complact and small turning circle for use indoors and in tight spaces
- Adjustable footplate height for optimum comfort
- Height-adjustable seat
- Width-adjustable armrests
- Flip-up footplate to assist with transfers
- 360 ° swivel seat for easy transfer in and out of the chair
- Easy-to-use joystick controls (instructions supplied)
- Two powerful 250W motors
- Anti-tip castor wheels at the rear
- Adjustable seat-belt
- Solid puncture-proof tires - (8" front and 9" rear)
Motor | 250W*2 Brush | Front-wheel size (inch) | 8*2" solid |
Battery | 24V 12AH/20AH lead-acid | Rear-wheel size (inch) | 9*3" solid |
Charging time | 4-6h | Size (unfolded) | 950X640X840mm |
Speed | 0-6Km/h | Size (folded) | 700X640X660mm |
Turning radius with footrest | 70cm 27inch | Packing size | 720X660X680mm |
Climbing ability | ≥8° | G.W. | 55kgs |
Distance/full charge | ≥18km ≥11miles | N.W.(With battery) | 50kgs |
Max loading capacity | 120kgs 265lbs. | N.W.(No battery) | 36kgs |
Remarks: | Features: With LED light, with horn, rear reflective strip, foldable, the seat can change 360-degree direction, power display, speed control button, armrest removable and raisable, seat width adjustable, change to manual operation, Folding and detachable into 5 parts easily for taking by one person | ||
1. Brushless controller, with USB charging port and LED light.
2. Width Adjustable Armrest
3. Brushless Motor and Anti-tip wheel
4. 360 ° swivel seat for easy transfer in and out of the chair
