Item No.: EW004
Certification: CE, ISO 13485
Price: To be confirmed based on your order
Payment Terms: T/T, L/C, Western Union, Paypal
Warranty: 1-year warranty, maintenance of life
Service: OEM/ODM

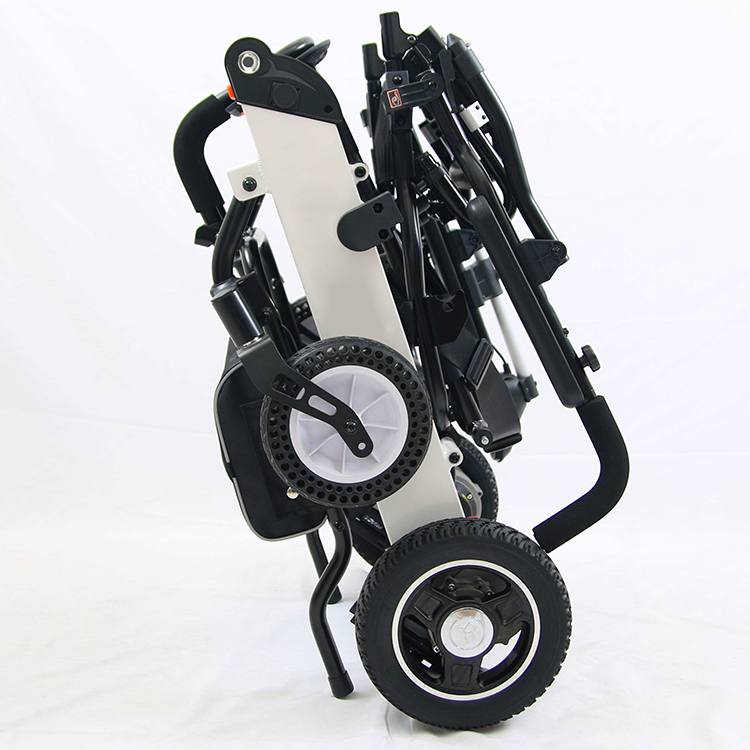

Weighing in at just 24kg with the battery, this Folding Electric Wheelchair is one of the lightest foldable power Wheelchairs on the market today. Additionally, this power chair folds up in just 3 seconds, making it compact and easy to store or transport.
- This series of electric wheelchairs are powered by Li-ion batteries and use DC motors. Users can control the direction and adjust speed by using the joystick controls located on the arm. This wheelchair can be used at low speeds, has good road conditions, and will handle low slopes.

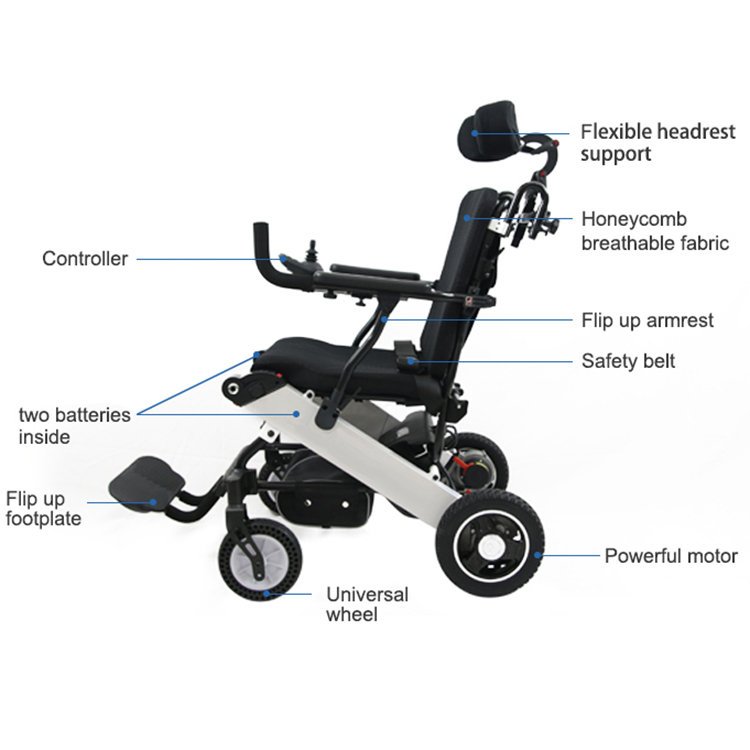

- The wheelchair comes adjustable (reclining) backrest, armrest, footrest and under-seat storage.
- The battery gets up to 20+km in driving distance.
- Apply to all different road types such as grass, ramp, deceleration strip, brick, muddy, snow, bumpy road.
- The lithium battery can be charged and used together or separately / airline friendly — The battery is allowed for transport on an airplane certified high-quality worldwide usable charger.
- This new electric wheelchair has remote control technology. 360 degree waterproof universal intelligent Joystick, easy controlling, it has a power indicator light, power on/off, horn, speed indication, speed up, and down buttons.
Load capacity: 120KG | Max Speed: 6KM/H |
Endurance: 15-25KM | Max Safe Brake-In Slope: ≤1.6M(3°) |
Obstacle crossing height: ≥2.5cm Ditch crossing width: 10CM | Horizontal Braking Performance: ≤1.0M |
Climbing ability: ≥3° Staying performance: 6° | Static Stability: ≥6° Dynamic Stability: ≥3° |
Min radius of turning: 0.9M | Ambient Temperature: -25℃~+50℃ |
Inner power: DC24V±5V | Electric Shock Protection Type Classification: Internal Power Supply Equipment |
The degree of shock protection classification: B type application part | Operation Mode Classification: Continuous Operation Noise: < 65Db |
Liquid Protection: IPX0 | Motor Rate: 300W *2For Each |
Overall size:106x63*95CM | Seat Width:44CM, Seat Height: 57Cm, Seat Depth: 42CM |
Folding Width: 45CM | Backrest Height: 40CM |
Net Weight: 24KG | Lithium Battery: 24Vdc7.5Ah×2 |
Front Wheel: 8’’ | Rear Wheel:10’’ |
